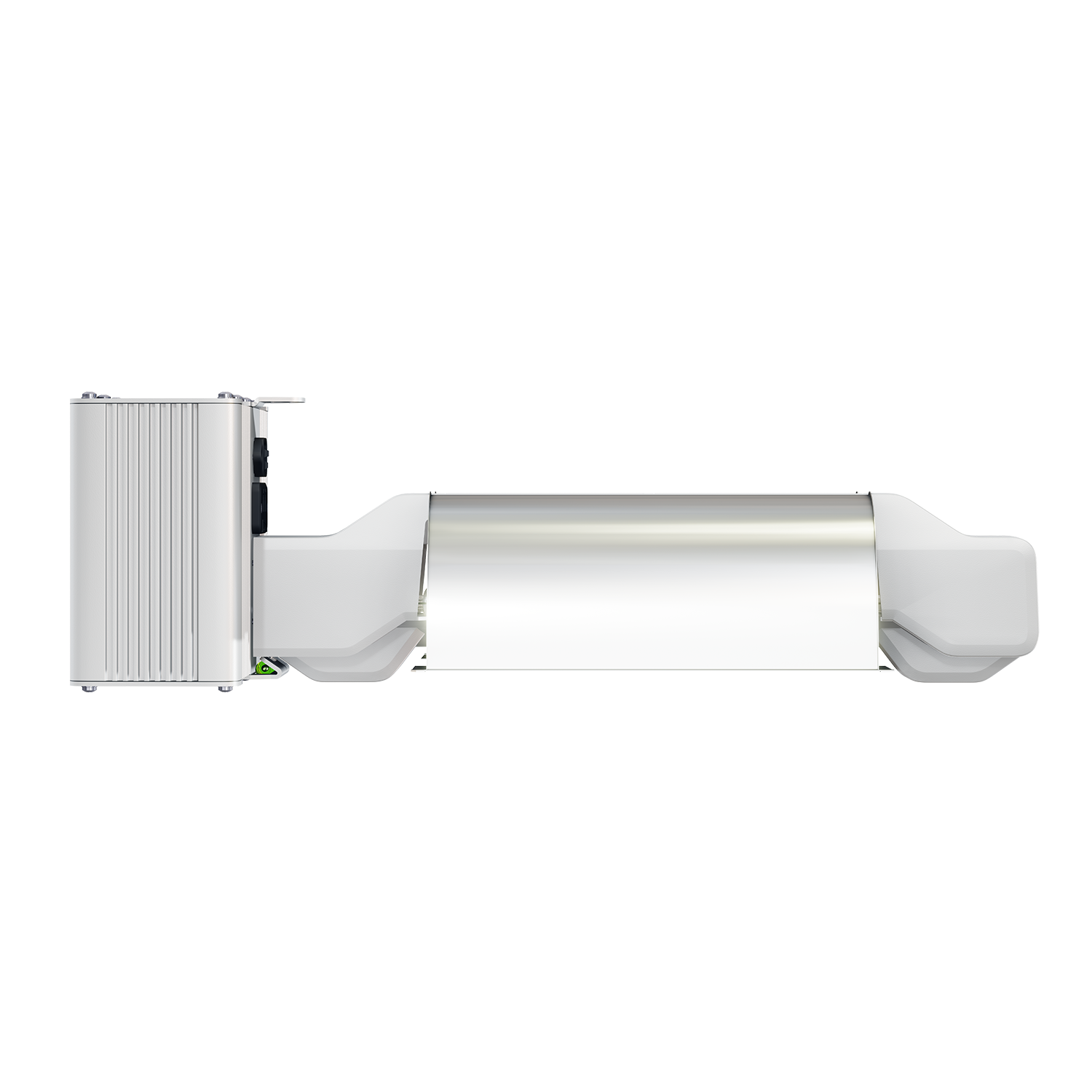

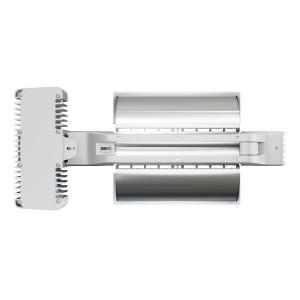

DIMLUX PRO SERIES
1000W 277-347V SMART EXCEEDCONN

• 277V
• US + CAN Market
• System PPF@1000W: 2016μmol/s
• System PPF@1150W: 2339μmol/s

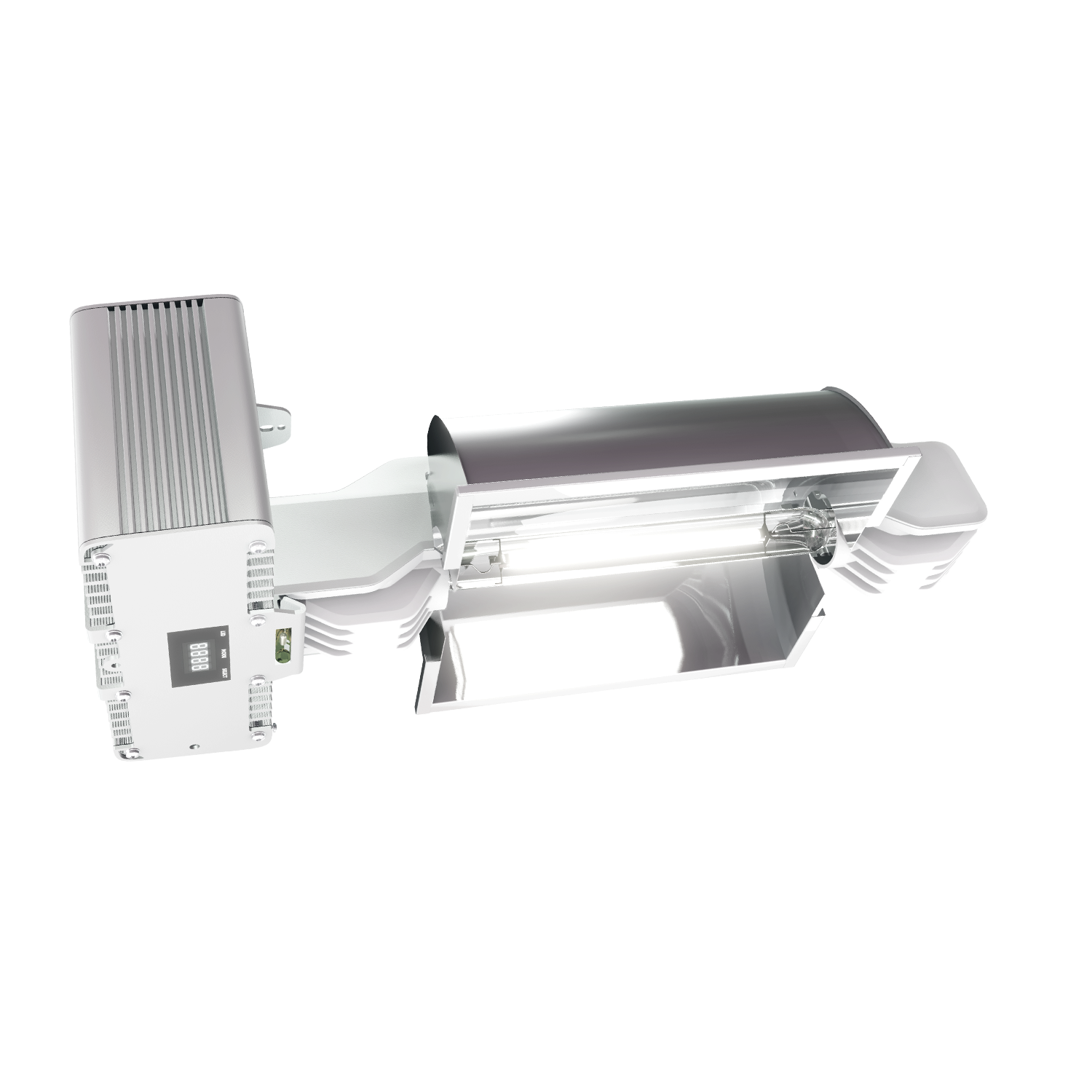

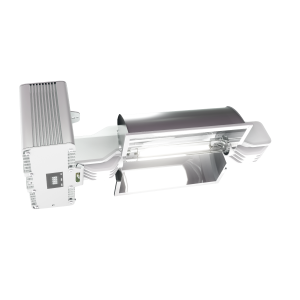

The dimlux Pro has a passively cooled Ultra Optics Single Bounce Clear Sight reflector guaranteeing the highest efficiency and light output in the horticulture industry.

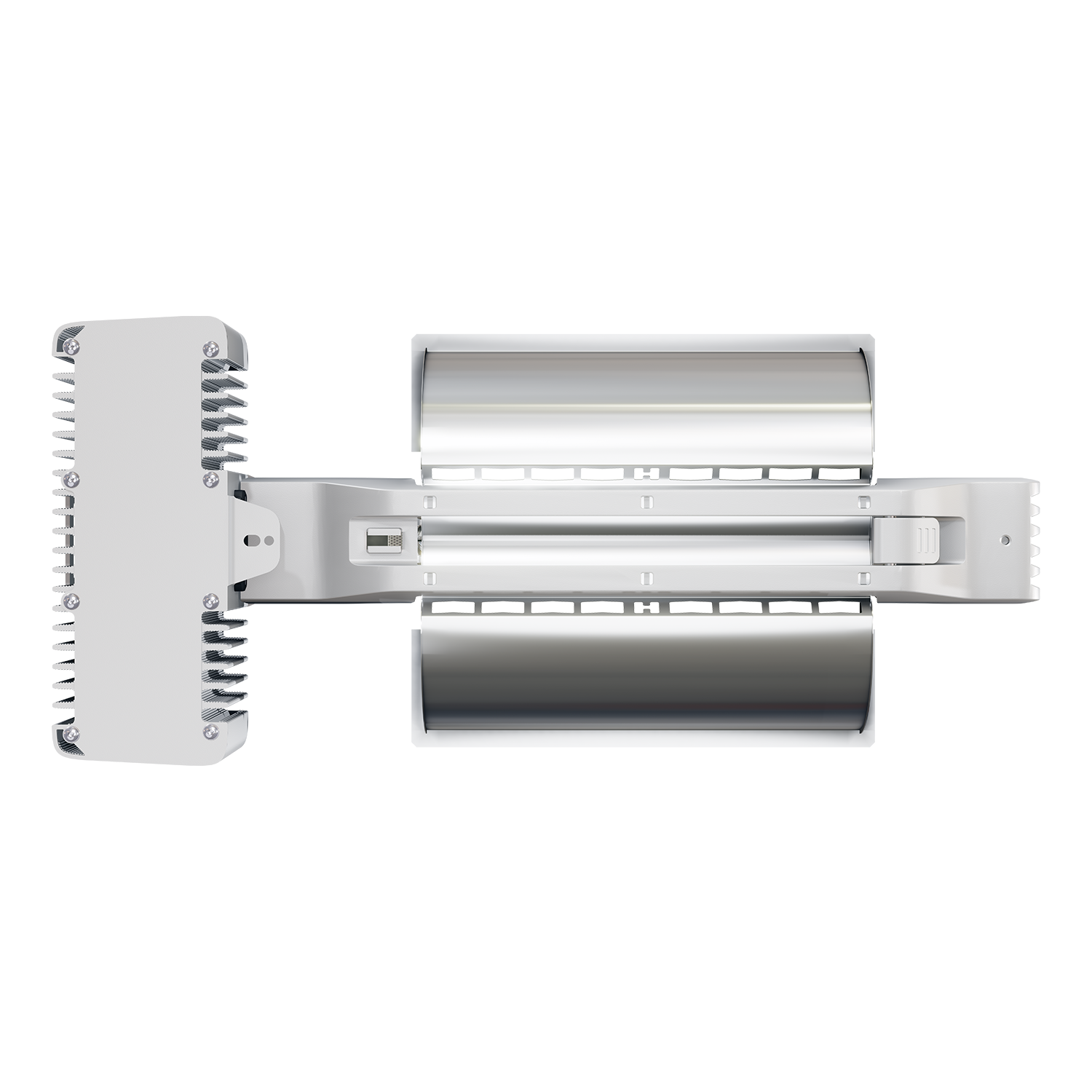

The dimlux Pro has a passively cooled Ultra Optics reflector in order to get the optimum lamp temperature and highest light output. By using Miro 95 (99,99 aluminium) instead of Miro Silver for the reflector, we prevent deterioration in high humidity when scratched.  The Ultra Optics reflector is available in 3 different styles of reflectors, Hybrid (default), Deep and Wide and can be changed quickly and easily, even at high heights.

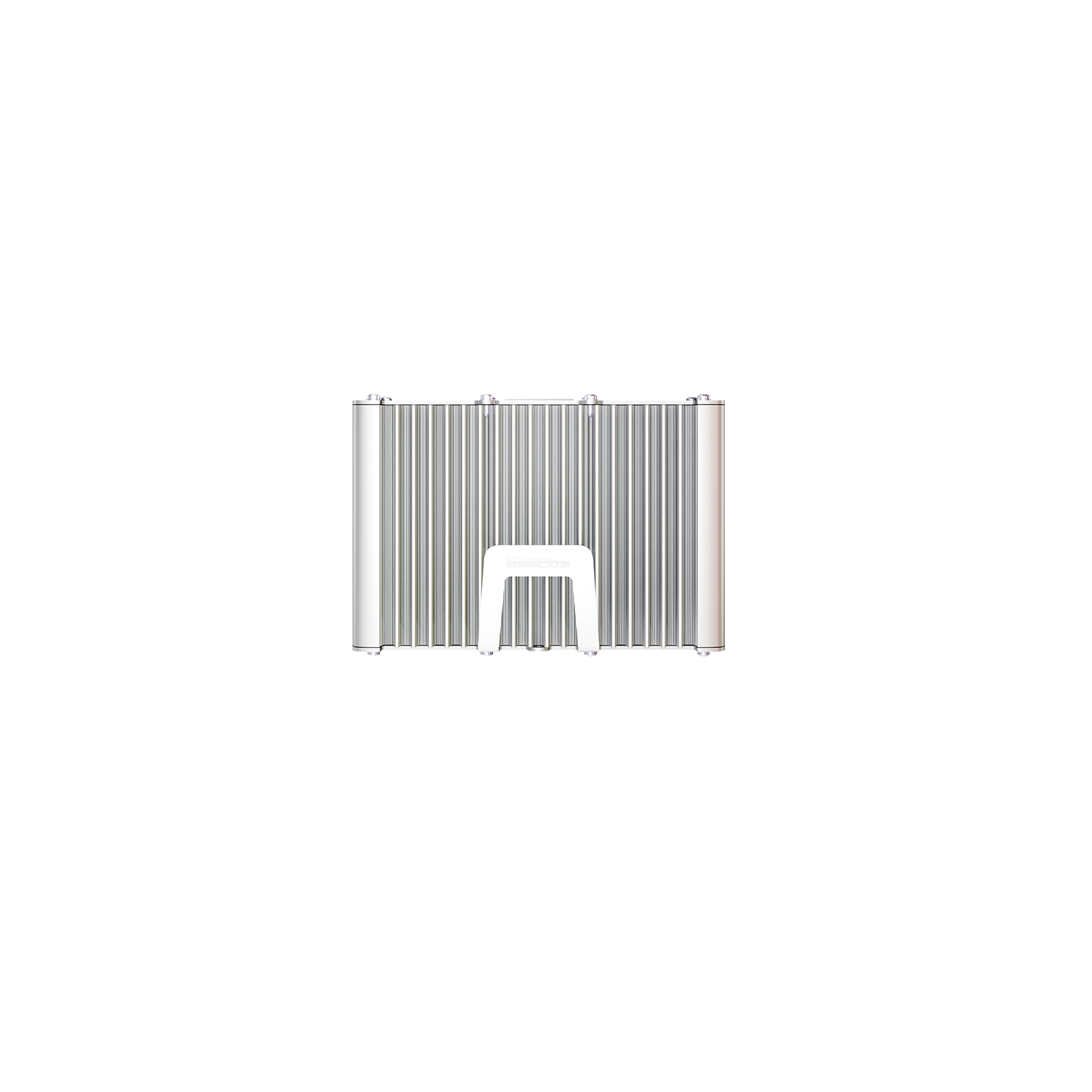

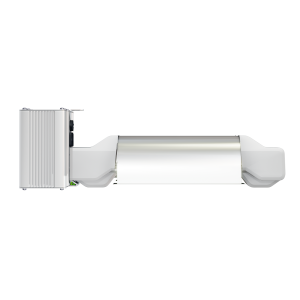

The ballast is ready for the new digital controller platform, and is upgradable. The Pro series has a closed ballast instead of an open ballast. This protects the ballast from moisture. The Geo Membrane equalizes the pressure inside and outside the ballast, while still preventing condensation on the electronics. The vertically mounted ballast will decrease the amount of daylight which is blocked by the fixture. We have done daylight simulations in CAD and this design had the least light interception during a full daylight cycle.

The output of the Dimlux Pro Series can be controlled up to 115%, both by using the dim button and by remote control. With the manual power settings 500, 600, 700, 800, 900, 1000, 1075 and 1150W you have a wide range of settings available.

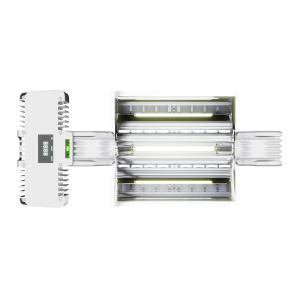

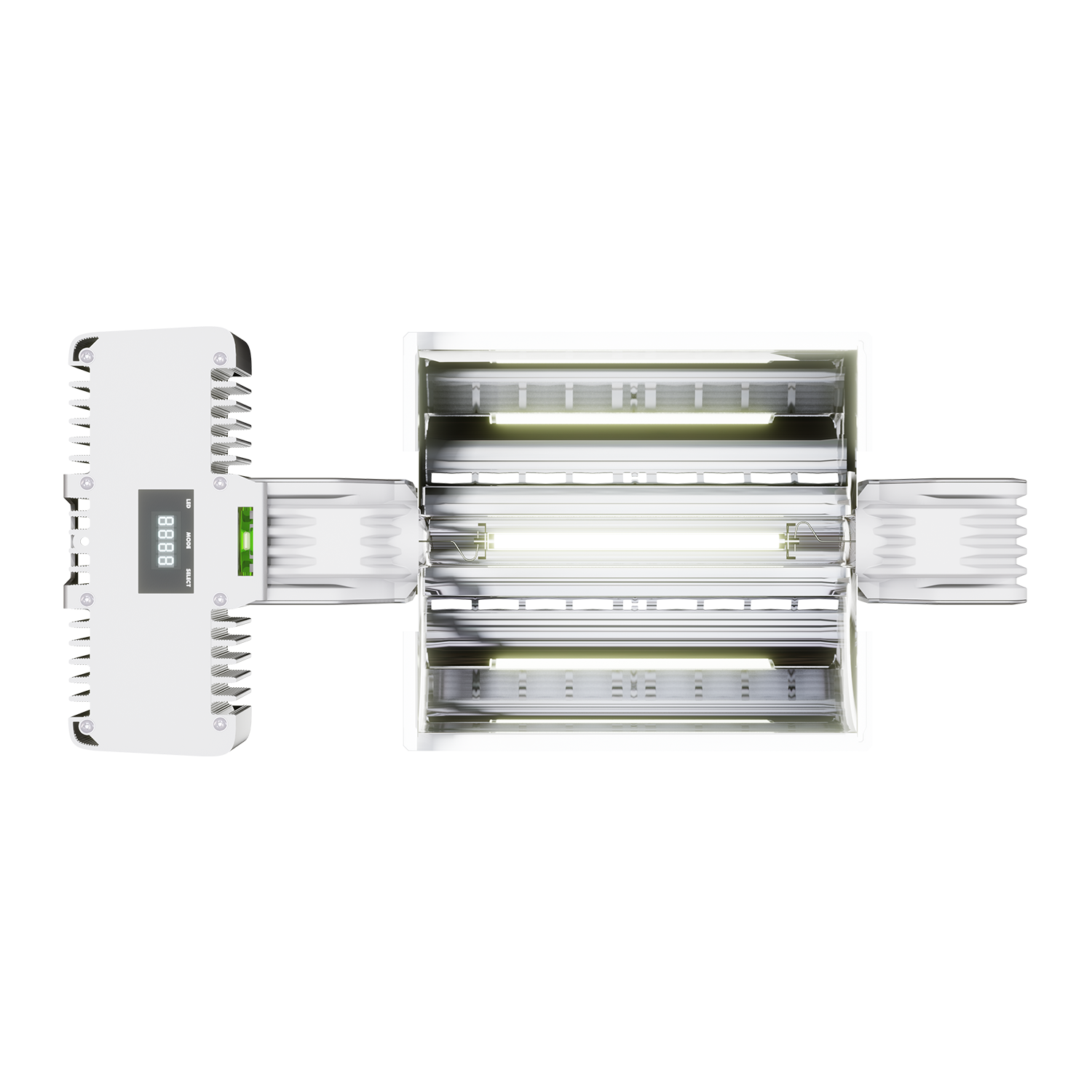

Status and alarms are displayed on a Four-character display making your Dimlux Pro even more easy to use.
